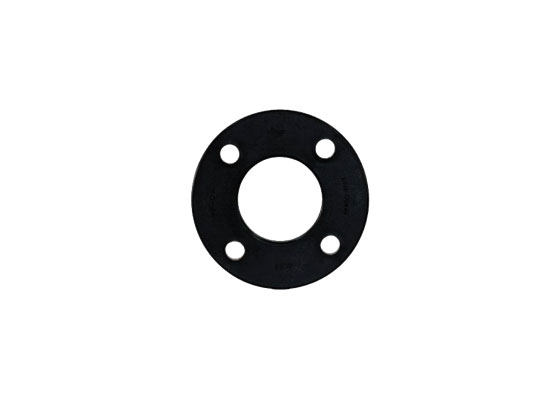

Ron mặt bích thép
|
Product Code |

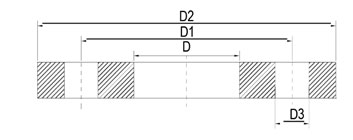

ND | Holes | D | D1 | D2 | D3 |
| mm | mm | mm | mm | |||
| GA40 | 40 | 4 | 55,0 | 100,0 | 140,0 | 18,1 |
| GA50 | 50 | 4 | 65,0 | 110,0 | 150,0 | 18,1 |
| GA63 | 63 | 4 | 78,0 | 125,0 | 165,0 | 18,1 |
| GA75 | 75 | 4 | 92,0 | 145,0 | 185,0 | 18,1 |
| GA90 | 90 | 8 | 110,0 | 160,0 | 200,0 | 18,1 |
| GA110 | 110 | 8 | 133,0 | 180,0 | 220,0 | 18,1 |
| GA125 | 125 | 8 | 150,0 | 210,0 | 250,0 | 18,1 |
| GA140 | 140 | 8 | 167,0 | 210,0 | 250,0 | 18,1 |
| GA160 | 160 | 8 | 190,0 | 240,0 | 285,0 | 22,1 |
